04 May Stepper Motors in Industrial Automation: Principles, Applications, and Solutions

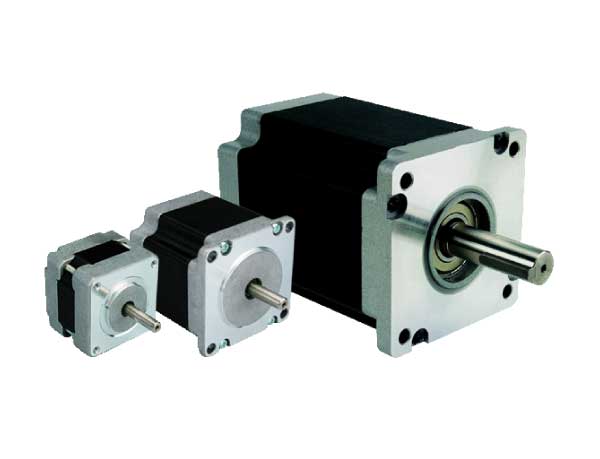

Stepper Motors in Industrial Automation : Introduction to Stepper Motor

Stepper motors have been incorporated in the present day motion systems and have gained popularity in industry due to their precision, reliability, and economy. Stepper motors are exclusively designed in such a way that they transform digital pulses from the electrical circuit into rotation of their shafts. Unlike normal electric motors, stepper motors rotate through distinct angular steps; hence, they can be used where there is a requirement of precise positioning.

One key aspect of stepper motors is their ability to function in an open loop system. In this regard, there is no requirement of additional devices such as encoders in order to monitor the position of the motor. This is because every pulse delivered produces an equal angle output. For this reason, stepper motors are especially useful in cases where precision and reliability are required. Another unique feature of stepper motors is that they can maintain a shaft position without rotating it.

As a result of improvements in design and material, the stepper motor has changed dramatically throughout its history. The newer stepper motors are designed for efficiency, less production of heat, and increased durability. This has widened the scope of applications for these motors in order to operate in tough conditions while still providing reliable service. In addition, these motors are critical in automation processes.

Operating Principle and Performance Characteristics

The principle of stepper motor operation lies in electromagnetics. In stepper motors, there is an array of coils that are energized in steps. Interaction between the rotor and electromagnetic field results in rotational movements of the rotor by particular steps depending on the number of electrical pulses.

It should be noted that stepper motors can be used in various ways. With the help of pulsed operation control, one can adjust the speed and angle of rotation precisely. For instance, the frequency of pulses controls speed, whereas the number of pulses determines the angle of rotation of the rotor. Stepper motors enable synchronous operation. In addition, these motors possess high holding torque that allows maintaining their position even under the influence of an external force.

One more important feature of stepper motors is microstepping, which implies breaking down a complete step into smaller fragments. Such an approach reduces vibrations and increases precision as well as smoothens the process of operation. Also, modern stepper motors are designed to reduce problems with resonances that cause jerky movements. While there are several advantages associated with the use of stepper motors, the importance of getting right motor sizing and loading cannot be underestimated. It will help avoid such complications as skipped steps and overheating. If chosen appropriately, stepper motors work very reliably and effectively.

Industrial Applications and Functional Advantages

Stepper motors are highly popular due to their versatile functionality and reliability across a wide range of industries. These actuators are used in manufacturing operations, for instance, in CNC machines where there is a need for precise tool positioning. Stepper motors are also employed in 3D printers, allowing for precise building of layers of various objects. In textile manufacturing, stepper motors help move fabric precisely, as well as control fabric patterns.

Moreover, stepper motors find their application in the healthcare industry, specifically for dosing pumps and diagnostic equipment. In laboratory automation systems, these motors allow for the precise positioning of samples, which helps deliver reliable test results. Also, stepper motors are frequently used in packaging machines, printers, and inspection systems where controlled and repeatable movements are necessary.

Firstly, stepper motors have an advantage over such expensive systems as servomotors in terms of lower prices. Stepper motors have simple construction, which means they need fewer repairs and easier implementation into the system. The second advantage of using stepper motors is their ability to perform well at low speed levels and produce high torque when stationary. An additional benefit is their ability to work in conjunction with different control systems, such as PLCs and microcontrollers. It means that it will be easy to integrate them into automated systems, improving their efficiency. The accuracy, durability, and cost-effectiveness make stepper motors an ideal option for various uses.

Strategi Automation Stepper Motor Solutions and Services

Strategi Automation supplies various types of high-torque stepper motors, which cater to different demands of the current industrial sector. Our motors feature advanced designs that facilitate their easy operation and long service life. In addition, we strive to develop customized solutions that are geared towards meeting particular client needs. Our mission is to ensure maximum satisfaction of each and every one of our customers.It involves some essential processes. In the first place, we make our selection of stepper motors considering the nature of applications and the load involved. We perform computations involving step angles and torque. It enables us to come up with a solution that would not pose any challenge in future due to missed steps.

Finally, Strategi Automation supplies not only stepper motors but also corresponding drivers and controllers. Correct configuration of all parts of such a complex solution is crucial for its proper functioning.The optimization of the performance of systems is yet another essential service we offer. Through optimizing parameters like the speed, acceleration, and current, we ensure that there are improved motion performances and positioning accuracies. This will not only improve the performance of your system but also extend its lifespan. With our services in place, you will enjoy long-term performance from your equipment. We provide our clients with guidance and technical support on how they can maintain their systems. With the combination of our products and services, we guarantee high motion control performances.
