Front Load Machine Tending Robot - FL MTR

For CNC Turning Centres

CNC Auto Loader

Front Load Machine Tending Robot- FL MTR – GRIPX 12

Transform your CNC turning center operations with the FLMTR-a uniquely engineered robotic system from Strategi Automation. In today’s dynamic manufacturing landscape, maximizing efficiency is essential. The FLMTR streamlines your workflow by automating part loading and unloading, freeing your operators to concentrate on higher-value tasks and driving productivity to new heights.

Why Choose FL MTR?

  • Rapid Loading and Unloading: With a swift cycle time of just 8 seconds, the FLMTR ensures your CNC turning center remains in continuous production mode, delivering unmatched operational efficiency.



  • Robust Construction: The FLMTR features a sturdy base structure designed  for maximum rigidity, ensuring stable and reliable performance even in demanding industrial  environments.



  • Space Efficient Footprint: Requiring only 400mm of space in front of the CNC  turning center, the FLMTR minimizes floor space usage, helping you reduce your  facility’s cost per square foot.



  • Convenient Parking Station: Simplify CNC setup changes with the FLMTR’s easy-to use parking station. During insert or setup changes, simply unlatch the base to  move the FLMTR back, then return it to its original position within minutes-no hassle,  no downtime.



  • Intuitive Control System: The FLMTR is equipped with a user-friendly control interface, allowing operators to program and monitor the robot’s performance effortlessly, without the need for extensive training or technical expertise.

Front Load Machine Tending Robot

Common Features

  • Payload Upto 2Kgs.



  • Suitable for low machining cycle times of 15-20 seconds
  • Very Fast Load Unload Cycle times of 8-10 seconds
  • Quick installation to cater to a single machine
  • Can be easily be moved out for machine repairs and brought back and aligned

Where to deploy

Engineered for universal compatibility with CNC turning centres of any make

Specifications

COMPONENT HANDLING DETAILS
Shaft Diameter 5 to 50 mm
Shaft Length 10 to 100 mm
Disc Diameter 10 to 100 mm
Disc Length 10 to 60 mm
Weight (Max) 2 Kg
RELIABILITY
Repeatability ±0.05 mm
Machine Life (Approx.)** 10 Million Cycles
Gripper Life (Approx.) *** 1 Million Cycles
Gripper Pad life (Approx.) # 1 Million Cycles
CONTROLS
Controller PLC based
Axis Movement 2 Axis – Intelligent Servo Based (X & Y)
Actuations Pneumatics
SPEED
Loading & Unloading time (Minimum)* 8 Sec
INSTALLATION DATA
M/C Height (Approx.) 2.6 m
Machine Weight (Approx.) 450 Kg
Power Supply (Approx.) Single Phase, 220 V AC, 50H
Electric Load ≤ 1.6 kW
Pneumatic 4.5 Bar (Min) 0.6 CFM/Cycle
GENERAL
Working Environment 5-45°C, 20-90% humidity
Compatible to CNC ACE, LMW, Jyoti, Sands, Galaxy, Tsugami, Askar, Pride
Consumables Gripper & Gripper Pads
Warranty 1 Year
* Does not include air purge time to flush out chips. Approx. door open to door close time.
** Estimated life of mechanical actuator like racks, pinion, linear guides etc.
*** Grippers are bought out items and we refer to the manufacturer’s specs.
# Gripper pads are hardened.
Front Load (MTR)

What we offer



  • Customer Approved Part Handling: Proven and reliable methods for handling both raw and finished parts, tailored to meet customer requirements.



  • Automated Lubrication System: Ensures consistent and optimal lubrication for smooth and maintenance-free operation.



  • Seamless CNC Integration: Advanced controls integration with the CNC machine, featuring standard safety interlocks for enhanced operational security.



  • Comprehensive Installation and Commissioning: Expert installation and commissioning services to ensure smooth startup and optimal performance.



  • Dedicated After-Sales Support: Responsive after-sales service and support to maximize uptime and customer satisfaction.



  • Automated Inspection and Wear Offset Correction: An optional feature enables automatic inspection and real time wear offset correction, eliminating the need for operator intervention. This ensures consistent, 100% quality in every part produced.



Don’t let manual handling slow you down! Upgrade your facility with the FLMTR today
and discover new levels of productivity and profitability. Just give us a call or fill out the
enquiry form below-one of our engineers will reach out to you soon!

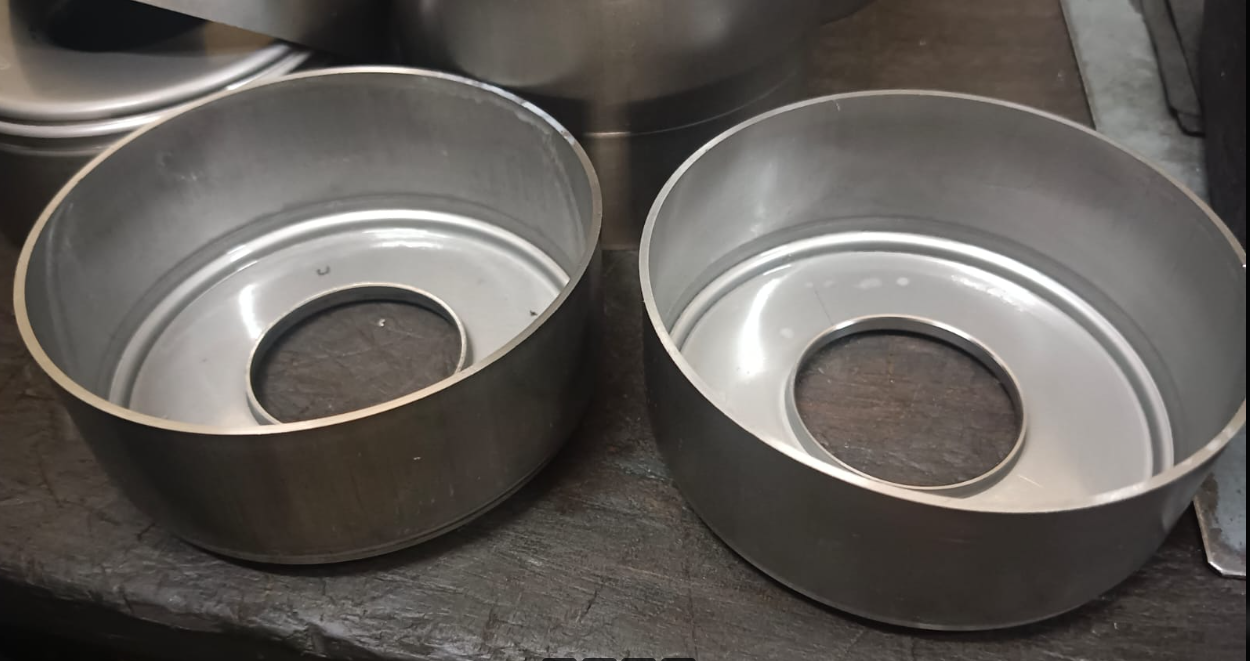

       Components

Front Load Machine Tending Robot- FL MTR - GRIPX 12

A uniquely designed and manufactured Robotic arm loads and unloads components from a CNC Turning Centre.

PLEASE SEE VIDEO FOR MORE DETAILS
