We are an ISO 9001 : 2015 certified company in the business of machine building, automation and motion control. We design ,manufacture and sell our own products, provide customized solutions in factory automation, distribute and system integrate motion control products.
ROBOTS
We can design and manufacture Robotic Automation systems for a variety of applications with industry standard Robots such as
- Yamaha for Cartesian Robots
- Yamaha And Epson for SCARA Robots
- Yaskawa and Epson for 6-axis Articulated Arm Robots

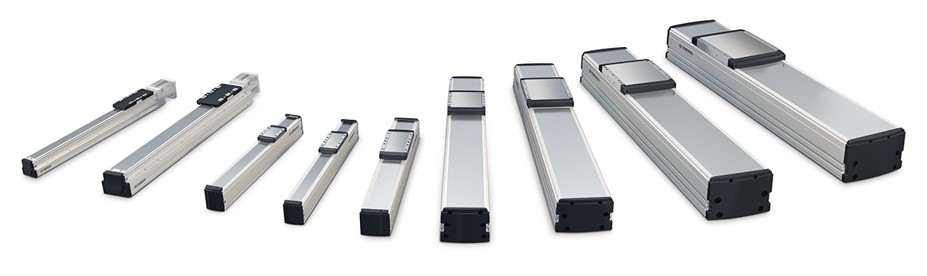

Stepping Motor Single Axis Robots (TRANSERVO Series)
- Compact and economical
- Combines the best features of servo and stepping motors
- Ball screw or belt driven models are available
- Slide, rod and rotary models are available

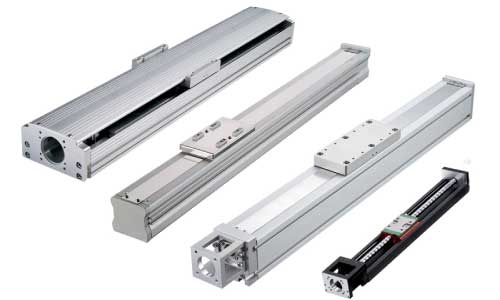

Servo Motor Single Axis Robots (FLIP-X Series)
- 4-row circular-groove 2-point contact guide maintains high performance even with large moment load
- AC Servo Motors with resolver provide excellent environmental resistance
- Ball screw and belt drive options are available
- Nut rotation model available for long stroke applications
Linear Motor Single Axis Robots (PHASER Series)
- Best for applications that require high speed and long travel
- Maximum linear speed of 2.5 m/s can be achieved
- Stroke length up to 4 m is possible
- Payload capacity from 5 kg to 160 kg
Motor less actuators ( Robonity Series )
- High Rigidity, high accuracy & high durability model
- Can be coupled to all standard brands like Panasonic, Yaskawa, Mitsubishi, Nidec Sankyo, Omron, Delta, Fanuc, Siemens Etc. up to 750W
- Repeatability Basic Series – +/- 0.01mm
- Repeatability Advanced Series – +/- 0.005mm
Cartesian Robots (XY-X Series)
- Different combinations of XYZ are available as fully assembled units
- Available with matching drives and controllers
- Individual components can be replaced for smooth and simple maintenance tasks
- Dual synchronous drive is available for custom requirements
Pick and Place Robots (YP-X Series)
- Payload capacity from 1 kg to 3 kg
- High Speed with cycle time of 0.45 seconds
- High precision of +/- 0.02 mm is assured
- Compact size with overall length of 109 mm
- Two, three and four axes models are available
SCARA Robots (YK-XG Series)
- Arm length from 120 mm to 1200 mm
- Payload capacity from 1 kg to 50 kg
- Wall mount model available for space constraint applications
- Dust-proof and drip proof models available
- Wide range of electrical grippers available
