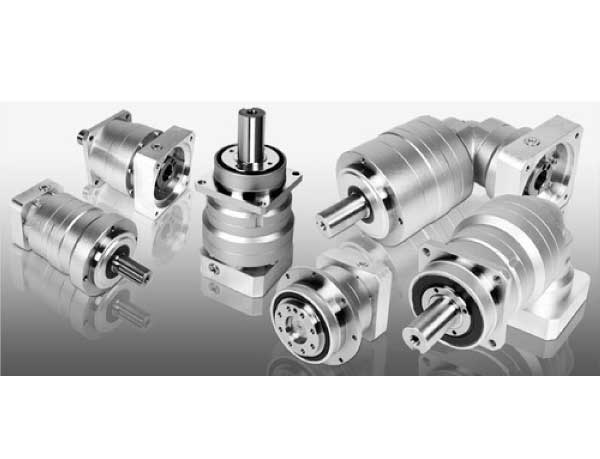

Servo Planetary Gear Reducer :
These Inertia matching is a crucial step in servo-based automation system. The most efficient way to do this is with a Planetary gear reducer. Planetary gear reducer is a high precision reduction gear unit designed to mount directly onto a standard servo motor. These gear reducers are manufactured with low backlash so that the positions commanded from servo drive is translated into motion without any loss.
With transmission efficiency >95% & maintenance free construction these are best suited for a servo system. Multiple teeth meshing paves the way for high torque density and load sharing. This helps the servo system to withstand much load in a compact construction. We offer Shimpo make Planetary gear reducer with ratios upto 100:1. They come with different backlash option which are selected based on applications.
Our Servo Planetary Gear Reducer Services Include :
- Selection of the right servo planetary gear reducer and configuration.
- Application-based torque calculation and inertia matching analysis.
- Supply of high-precision servo planetary gearheads.
- Installation and integration support with servo motor systems.
- Performance optimization for reduced backlash and improved accuracy.
- Maintenance guidance and technical support.
Features :
- The Gear Reducer is the perfect solution for servomotor applications such as packaging machines, gantries, injection molding machines, pick and place and linear slides.
- Offered in concentric shaft, rightangle solid shaft and right angle hollow shaft designs with modular adaptor flanges and keyless compressible bushings to easily mount to any manufacturer’s servo motor.
- Choose from standard backlash (<=15 arc-min), low backlash (<=5-10 arc-min), precision backlash (<= 3 arc-min) and zero backlash (<=1 arc-min).
- Input speeds up to 6,000 RPM.
- Ratios upto 100:1.
- Nominal output torque upto 2400 Nm.
Applications :
- Flame Cutting Machines
- Special Purpose Machines
- Gantry Robots
- Labelling Machines
- Packaging,Printing & Textile Machines
| Features | Benefits |
|---|---|
| Case Carburised and hard cut helical gears(right angle has spiral bevel gear) | Smooth quiet operation : input speeds upto 6000 rpm |
| O-Ring in piloted adaptor flange (Patent pending) | Absorbs clearance between motor and adaptor eliminating misalignment and minimizing vibration;provides additional seal to keeps contaminants out |
| Grease Lubrication | Allows mounting in any position w/o modifications ;20,000 ,hour maintenance free operation |
| Contact lip seals and sealed input shaft bearing (IP64 rating) | Excellent protection against lubricant leakage and external contamination; Can be easily modified for an IP65 rating (optional epoxy or Steel-It® paint available) |
| ACCULOK keyless locking hub | Provides tight fit with motor shaft (key is not required) without adding backlash |
| Oversized bearings | Exceptional output shaft overhung and thrust load capabilities |
| Standard, low, and precision backlash available in the same housing design | Choose only the level of precision you need for your application without having to modify your design; Housing style matches shape of servo motor |
| Modular adaptor flange and keyless compressible bushings | Easily adapts to any manufacturer’s servo motor; 2 day shipping |
| Optional output flanges | Versatility in mounting |
