01AC Geared Motors
AC geared motors deliver compact, silent, and reliable torque for textile machinery requiring consistent speed and high holding torque. Solutions span from 6 to 200 watts with customizable gear ratios for spinning frames, winders, and auxiliary equipment.
Key Capabilities
- Frame sizes 60–104 mm with output torques up to 400 kg-cm
- Single-phase, three-phase, reversible, and variable-speed configurations
- Gear ratios from 3:1 to 2000:1 with optional electromagnetic brakes
- UL rated, IEC certified with 5,000-hour bearing life
02AC Drives / VFDs
AC drives and variable frequency drives (VFDs) enable precise speed control and energy optimization for textile machinery. Our solutions deliver soft-starting, dynamic braking, and energy-efficient operation across motors of varying sizes and applications.
Key Capabilities
- Single-phase and three-phase input/output configurations
- Speed control from 0–100% with soft-start and dynamic braking functions
- Energy-efficient operation reducing motor power consumption by up to 40%
- Multi-protocol communication (Modbus, CANopen, Ethernet) for seamless PLC integration
03PLC (Programmable Logic Controllers)
Advanced PLCs deliver precise, high-speed control for textile production, supporting multi-axis motion, temperature regulation, and real-time diagnostics across spinning, weaving, and finishing processes—ensuring smoother, more efficient operations.
Key Capabilities
- High-speed execution at 0.32 microseconds per step
- 384 to 2,048 I/Os with servo axis control up to 112 axes
- Ethernet, Modbus TCP/IP, EtherCAT, Ethernet/IP protocols
- PID temperature control and IEC 61131-3 programming standard

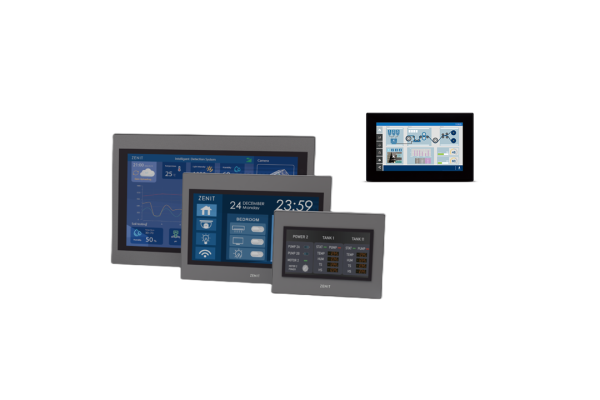

04HMI / HMI Touchscreens
Intuitive touchscreen interfaces let textile operators monitor performance, adjust parameters, and respond to alerts in real time, while integrating with major PLCs for recipe management, alarms, and remote monitoring.
Key Capabilities
- Multi-protocol communication (RS232/485, Ethernet)
- Recipe storage, alarm logging, trend analysis, and data logging
- Remote monitoring via VNC and mobile access
- IoT protocols (MQTT, Fatek IoT) for cloud integration

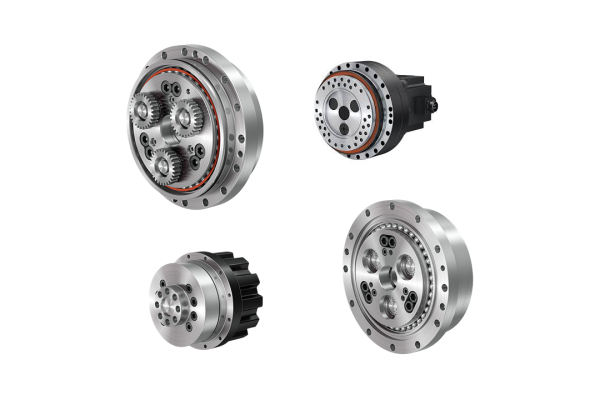

05Servo Planetary Gearbox
Precision servo planetary gearboxes provide ultra-low backlash power transmission for high-accuracy textile applications including yarn tensioning, fabric advancement, and jacquard pattern control.
Key Capabilities
- Concentric shaft, right-angle solid/hollow shaft designs
- Backlash options: standard, low, precision, and zero (<1 arc-min)
- Input speeds up to 6,000 RPM with ratios up to 100:1
- Output torque up to 2,400 Nm

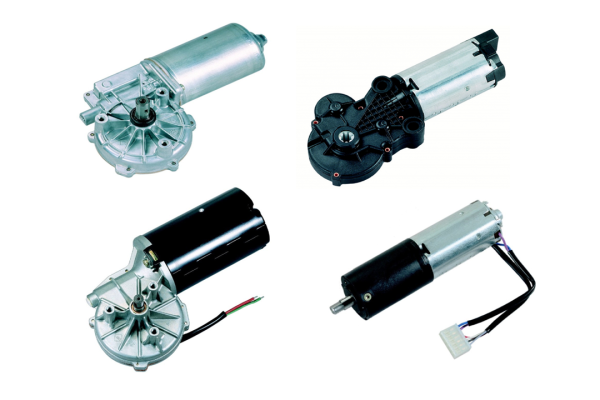

06DC Geared Motors
Low-voltage DC geared motors deliver high stall torque for textile auxiliary equipment including dye circulation pumps, paste mixers, and fabric handling systems. Available in 12V and 24V with integrated hall sensors.
Key Capabilities
- FHP 12V/24V DC motors with life-lubricated gearboxes
- High stall torque with continuous and intermittent duty options
- Hall sensors for stall detection and anti-pinch operations
- Rugged construction for harsh textile mill environments
