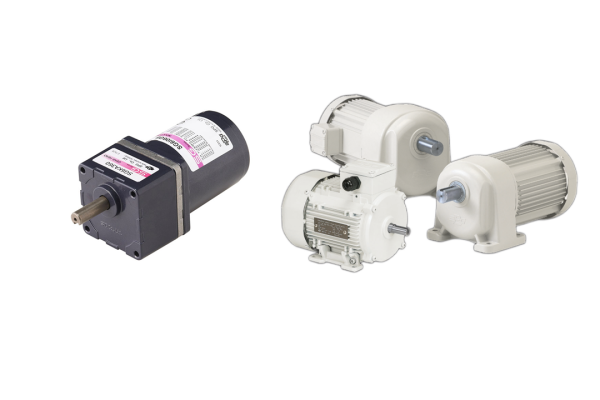

01AC Geared Motors
Ideal for applications requiring reliable, compact power transmission with low noise operation. Our AC geared motors feature:
Key Capabilities
- Power Range: 6 Watts to 200 Watts
- Compact Design: Frame sizes from 60mm to 104mm
- Low Noise: Helical gears immersed in grease bath for silent operation
- Versatile Options: Single/three-phase induction, reversible motors, electromagnetic brake variants
- High Torque Output: Up to 400 kg-cm with gear ratios from 3:1 to 2000:1
- Long Service Life: Ball bearing heads rated 5000 hours; metal bearing heads rated 2000 hours

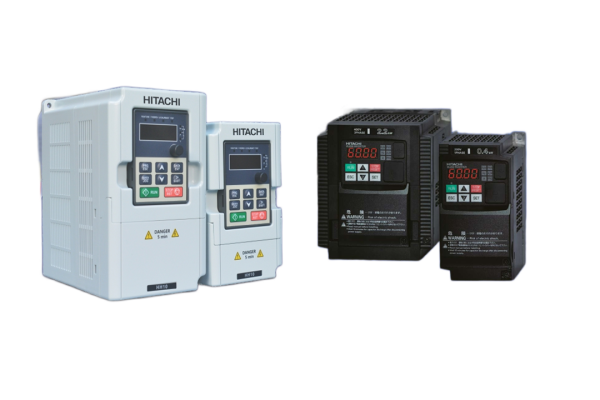

02AC Drives / VFDs
Scalable variable frequency drives for precise motor speed and torque control across your production equipment.
Key Capabilities
- Power Range: 0.25HP to 550HP
- Input Options: Single-phase and three-phase available
- Control Features: Modbus RTU communication, sensor-less vector control with 200% starting torque
- Positioning Accuracy: AST FS encoder feedback for precision motion control
- Integration: Built-in brake circuits and EMC filters in select models
- Applications: Conveyors, compressors, packaging, printing, and textile machinery

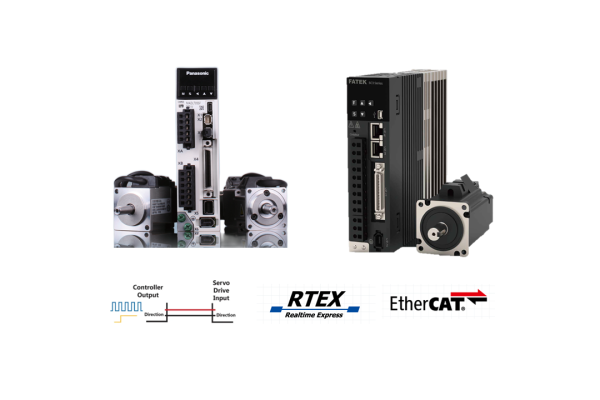

03AC Servo Motors and Digital Servo Drives
Advanced servo systems for applications demanding stable speed control, precise positioning, and quick response times.
Key Capabilities
- Torque Range: 0.023Nm to 95.5Nm rated torque
- Speed Performance: 1000-3000 rpm rated; 2000-6000 rpm peak speeds
- Design: Compact, rugged construction with low and high inertia options
- Reliability: IP 67 class, absolute/incremental encoders with fail-safe electromagnetic brakes
- Certification: CE and UL rated for industrial compliance
- Applications: Precision positioning, packaging lines, quality control mechanisms

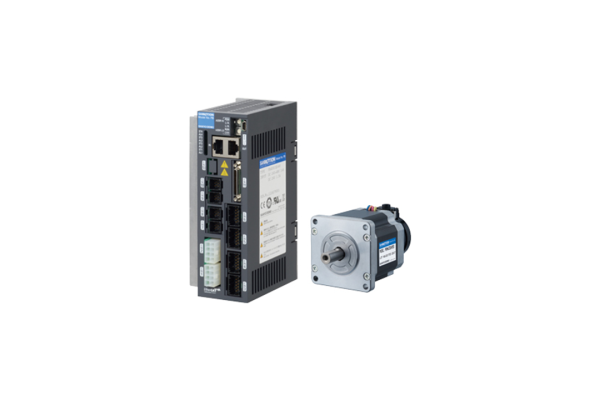

04Stepper Motors
High-precision stepper motors provide exact positioning and smooth, controlled motion for demanding applications. They deliver low vibration and high repeatability, ensuring stable and accurate machine performance.
Key Capabilities
- Specification: 2-phase hybrid design, 200 steps/turn, 1.8°/step
- Torque Options: 0.24 N.m to 19 N.m holding torque
- Frame Sizes: NEMA 17 to NEMA 42
- Performance: Strong torque at higher speeds with reduced vibration and noise
- Customization: Double-end shaft, gearboxes, and encoder options available
- Standards: UL and EN compliance available

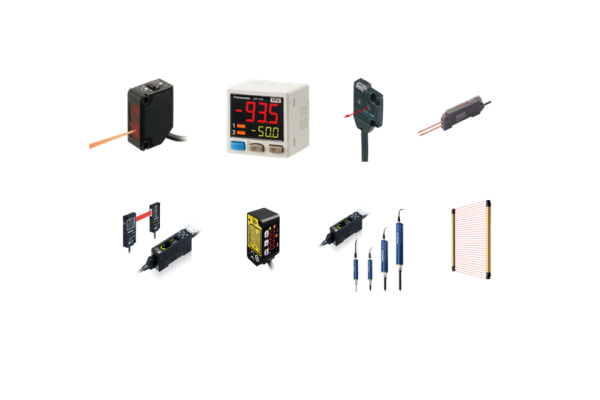

05Sensors
Precision sensing solutions for position, presence, safety, and process monitoring in automated machines. Our sensor range supports reliable feedback in harsh industrial environments for both standard and high-performance applications.
Key Capabilities
- Proximity sensors for accurate metal and non-metal detection in compact machine spaces
- Photoelectric sensors including thru-beam, diffuse reflective, and retro-reflective variants for flexible part detection and counting
- Laser sensors for high-accuracy distance and profile measurement in precision assemblies
- Safety light curtains for finger, hand, and body protection around hazardous machine zones
