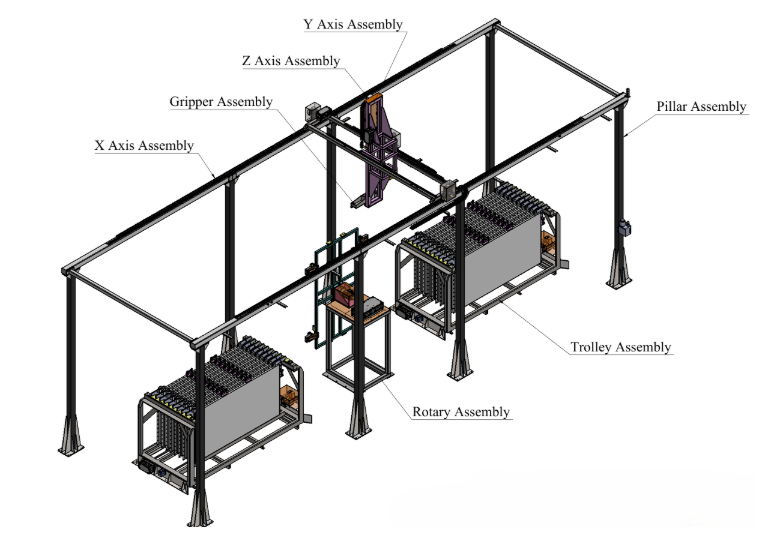

Pick and Place Gantry System
What is Pick and Place Gantry System?
Why choose our Gantry Solutions?
Our Expertise in Gantry System:
✔ Payload Capacity: 2 kg to 80 kg
✔ Stroke Range: Up to 15m (X), 5m (Y), 5m (Z)
✔ Positioning Repeatability: Up to 50 microns
✔ High-Speed Operation: Linear speeds up to 2.5 m/sec
✔ Part Handling Expertise: Heavy plates, discs, prismatic parts, and more
✔ Advanced Manipulation: In-built flipping and changeover mechanisms
Looking for a Custom Gantry Solution?
Contact us today to discuss your automation needs!
1. What is a pick and place gantry system?
A pick and place gantry system is an automated robotic solution that uses linear actuators or rails (gantries) to move a gripper or end-effector in the X, Y, and Z directions. It is designed to pick up objects from one location and place them at another with high precision and repeatability.
2. How does a gantry system differ from a robotic arm?
Unlike articulated robotic arms that rotate around joints, gantry systems use a Cartesian coordinate system and linear movements, which provide greater stability and are ideal for tasks that require long travel distances or handling heavy loads over large work areas.
3. What industries commonly use pick and place gantry systems?
These systems are widely used in:
- Automotive manufacturing
- Electronics assembly
- Packaging and palletizing
- Food and beverage
- Logistics and warehousing
- Pharmaceuticals
4. What are the key benefits of using a pick and place gantry system?
- High speed and repeatability
- Handles heavy payloads over large areas
- Customizable for specific tasks and layouts
- Lower maintenance compared to complex robotic arms
- Integration with vision systems for dynamic picking
5. What types of items can a gantry system pick and place?
Depending on the gripper or vacuum system used, gantries can handle:
- Boxes and containers
- Electronic components
- Metal or plastic parts
- Food products
- Pallets and trays
