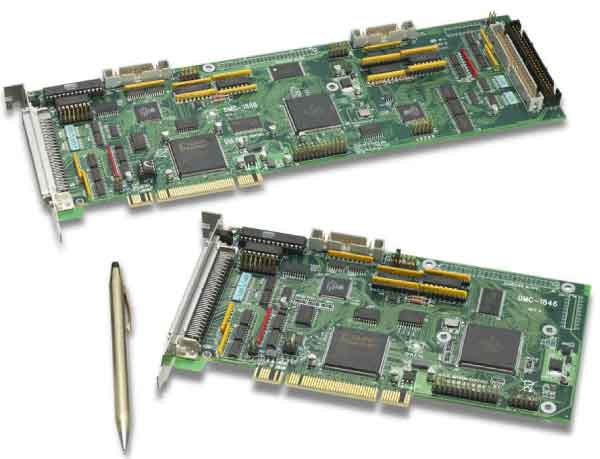

PC Based Multi Axis Motion Controllers

FEATURES

Versatile, reliable motion controller up to 8 axes on a single card.

Can control Stepper and Servo Motors, Pneumatics and Hydraulics.

Various bus options like PCI, ISA, Compact PCI, PC/104, VME.

Standalone Controllers come along with various communications options like RS232, RS485, USB and Ethernet.

These controllers are capable of Point to Point positioning, Linear and Circular Interpolation, Contouring, Electronic Gearing and Electronic CAM.

They have 24 micro seconds servo update rate per axis, 16 bit motor output DAC, 16bit ADC, 22 MHz pulse rate encoder feedback for Servos, 6MHz pulse rate for Steppers, Sinusoidal Commutation for Brushless Motors, High Speed position capture, High speed encoder compare out, I/O functions and timers for PLC tasks, Remote I/O Modules, flash EEPROM for firmware updates, program, parameter and array storage.

Programming can be done in English like Intuitive commands or C, Basic, VB etc.

Other interfaces like G-Codes, CAD, HPGL, LABVIEW, Wonder Ware etc. are also available.

APPLICATION AREAS

EDM Machines, Routing Machines, Laser Cutting Machines, Labeling Machines, Coil Winding Machines, Glass Cutting Machines, Co-ordinate Inspection Machine, Semiconductor test and manufacturing etc.
